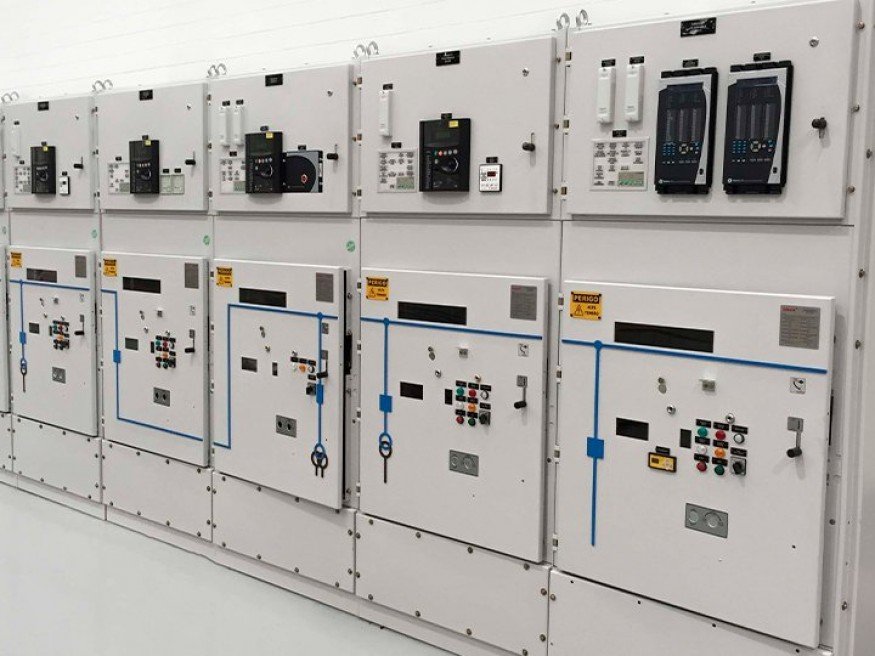

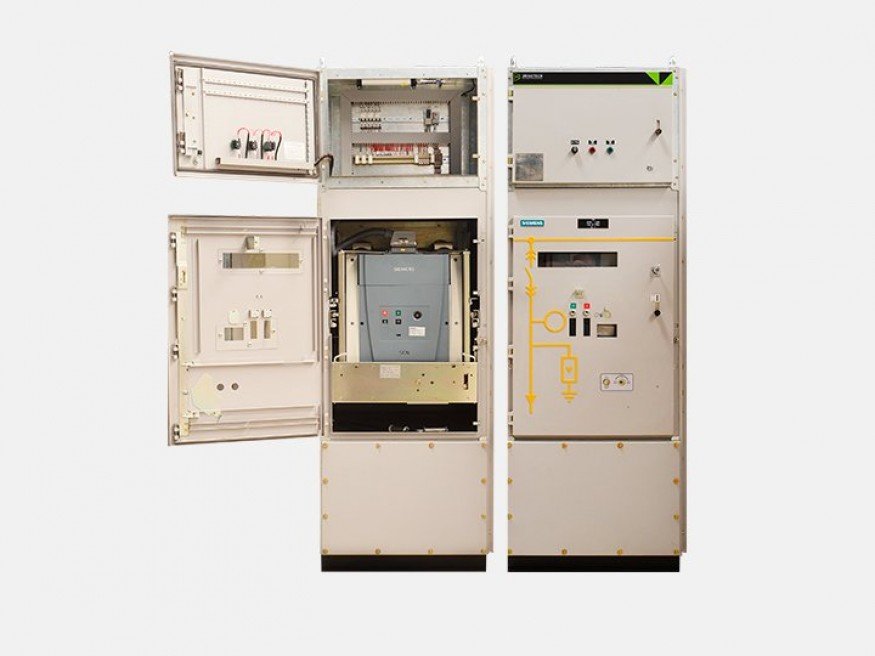

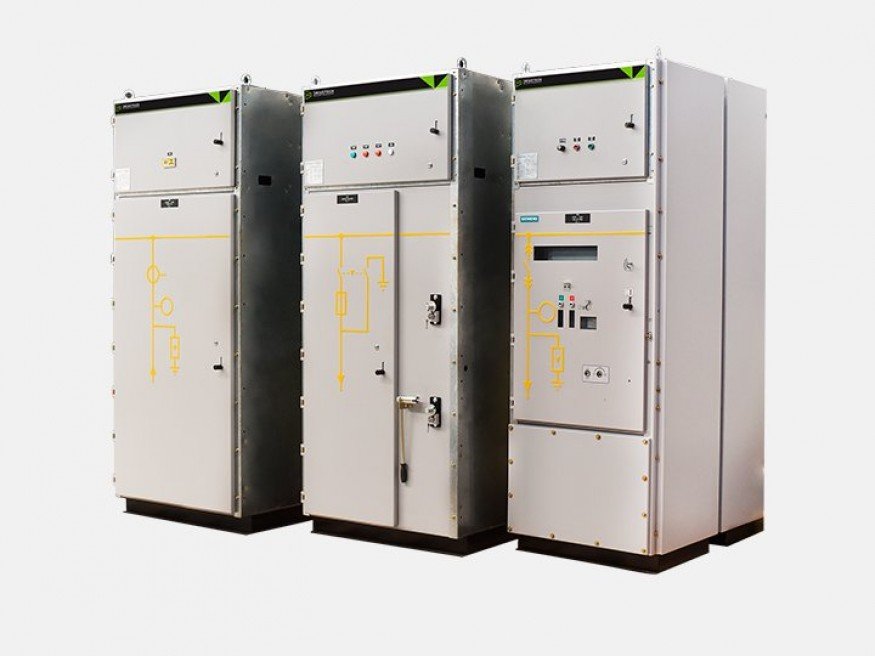

Our medium voltage cubicles are developed and tested for voltages up to 36kV, fully meeting the requirements of the IEC 62271-200 standard, incorporating the main features of reduced dimensions, ease of assembly and maintenance, as well as the flexibility to adapt to different features required by the market.

Technical Features:

Internal Arc Resistant;
Rated Voltage up to 36.2 kV;
Rated Current up to 4000A;
Short Circuit Current Icc Yes up to 50kA;
Frequency 50/60Hz;
Classification for Internal Arc (IAC) – AFLR;
Loss of Service Continuity Category (LSC) – LSC2B;
Standard IEC 62271-200 and NR10.

Products:

CPC - Concessionaire Protection Cubicles;
CMC- Concessionaire Measuring Cubicles;
CPA – Feeder Protection Cubicles (dispatches);
CPM – Motor Protection Cubicles;
CDG - Disjunction Generator Cubicles;
CFN - Neutral Closing Cubicle;
CAT - Grounding Cubicle;
CST - Outbreak Cubicle;
CSEC - Sectioning Cubicles.
