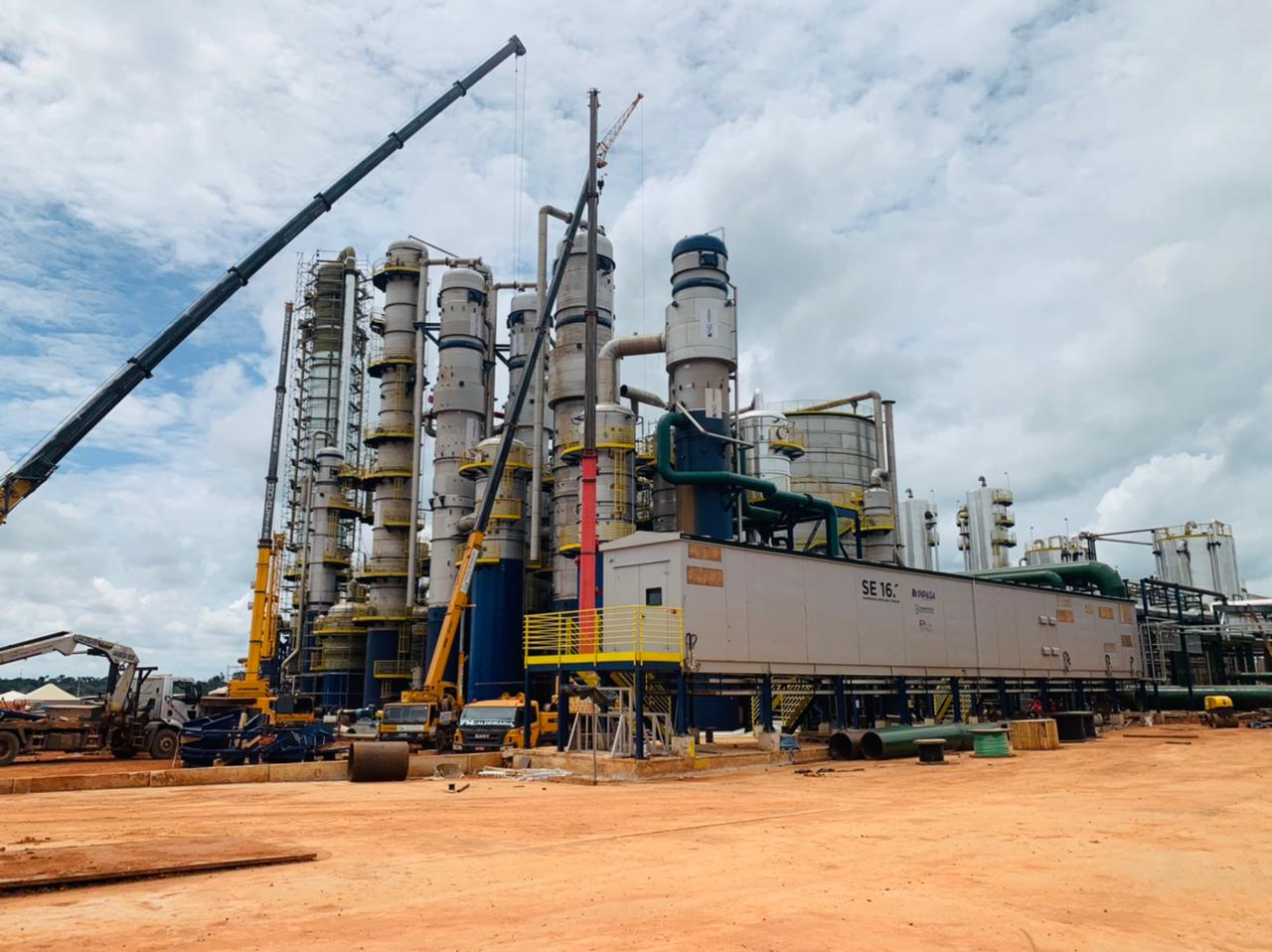

Our Electrocenters are custom designed and manufactured to house transformers, Medium Voltage Cubicles, CCM's, Automation Panel, Safe Source System and other necessary peripherals.

The entire system is integrated using a communication protocol, thus increasing productivity and generating savings. The Electrocenters is delivered to the customer interconnected and tested at the factory, ready to receive external input and output connections from medium and low voltage (MV and LV) loads.

Electrocenters are customized and meet the specifications of each client. They are produced and tested using the most up-to-date construction technologies and safety standards to ensure quick installation in shorter terms at advantageous costs.

Features

Base: Welded rolled steel profile, meeting project load.
Columns: Made up of profiles, welded between the floor and the ceiling, forming a rigid set.
Walls: Galvanized steel sheet with internal thermal rock wool coating.

Lifting and transport: Provided eyebolts distributed on the base allowing lifting and movement in any direction.
Personal access/equipment doors: Galvanized steel sheet with rock wool thermal inner lining with anti-panic bar.

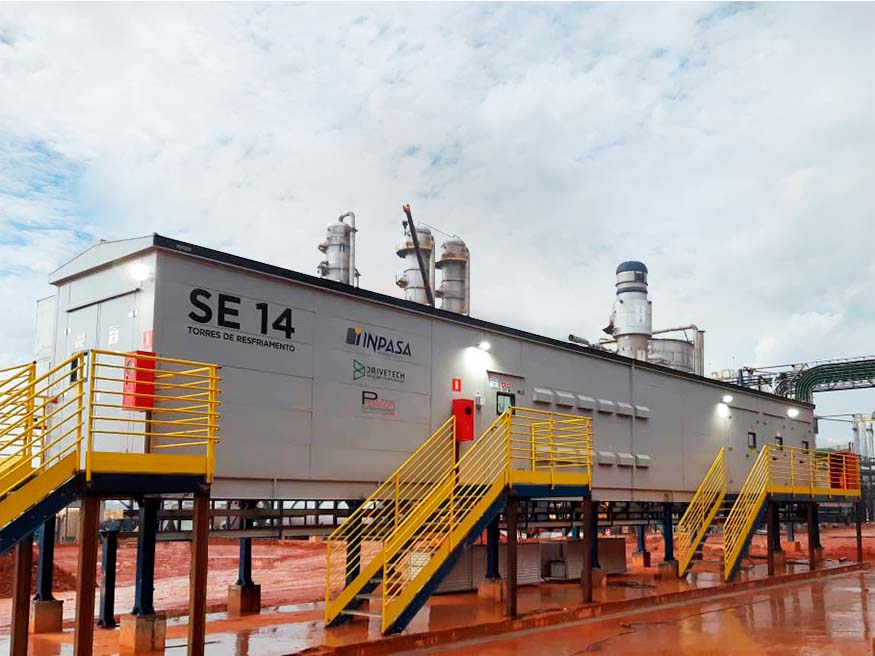

Stairs/Platforms/Pilotis: As required by the project.

Access control: As required by the project.
Grounding/SPDA: As required by the project.
Treatment: Cleaning of surfaces by blasting or solvents.
Painting: As required by the project.

Projects, Equipment and Services

EXECUTIVE PROJECTS

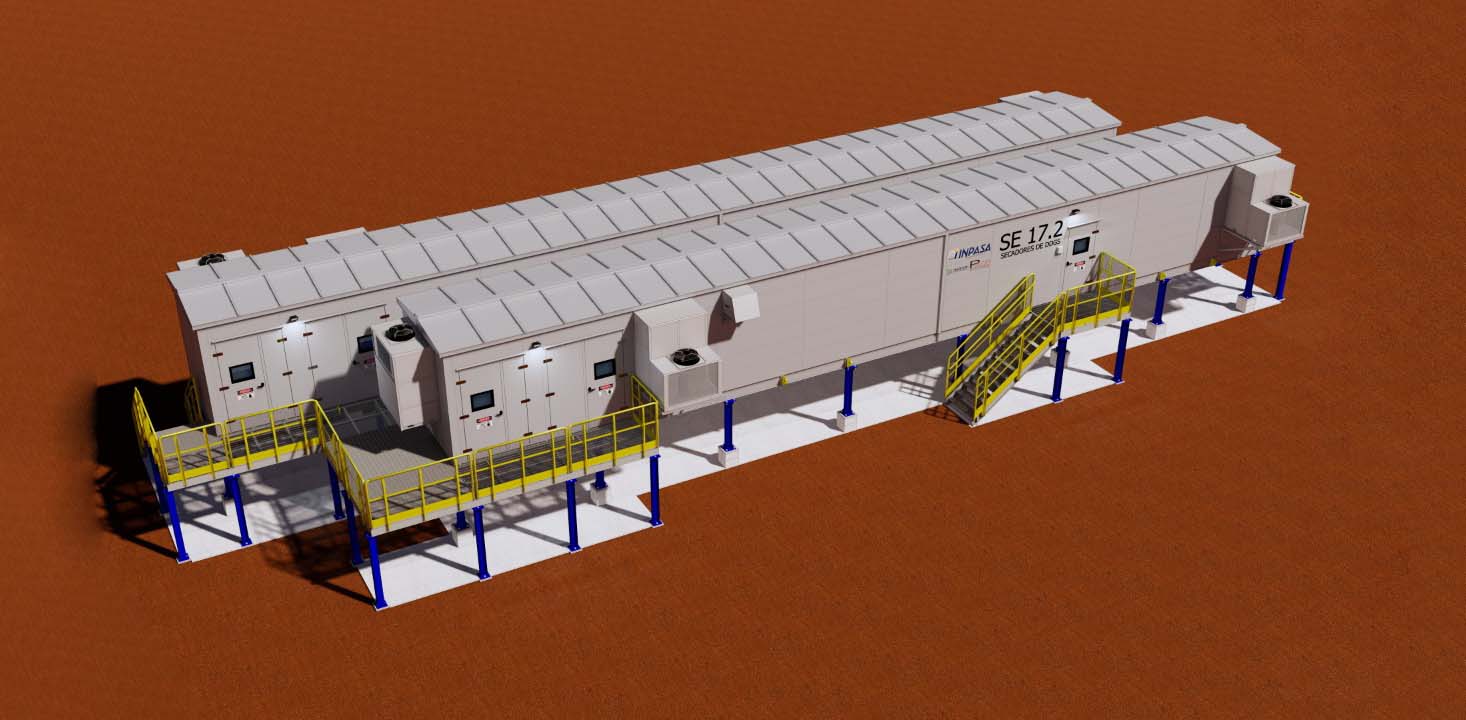

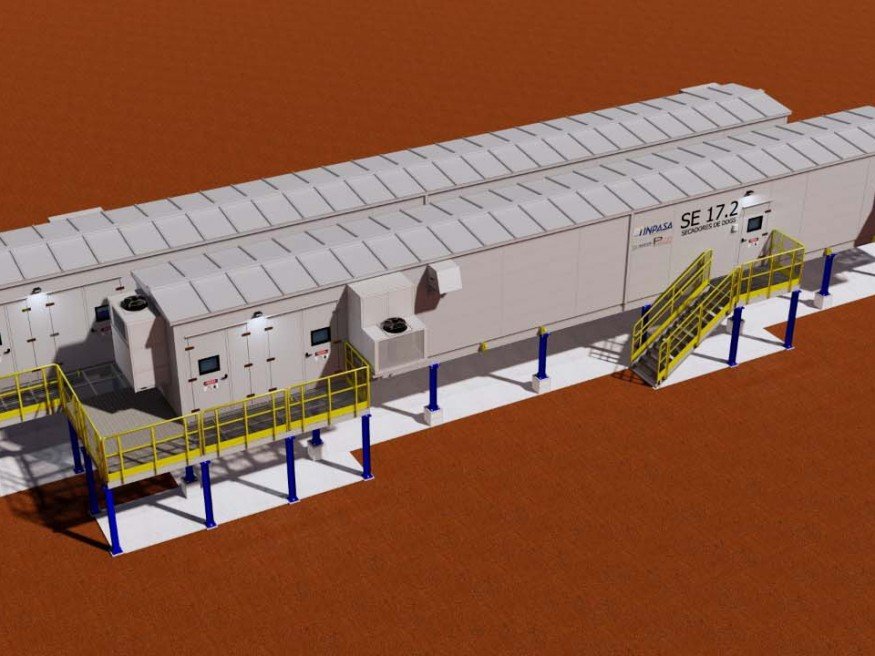

Electromechanical Project, detailed in AutoCAD (2D or 3D); Layout, loading plan, platform and ladder;
Structural studies and calculations;
Civil Project - Foundation of electrocenters;
Electrical Project - Lighting and sockets, grounding, SPDA;
Air Conditioning Project;
Electromechanical design.

EQUIPMENT

Dry and oil transformers;
Medium Voltage Cubicles;
QGBT - General Low Voltage and Distribution Boards;

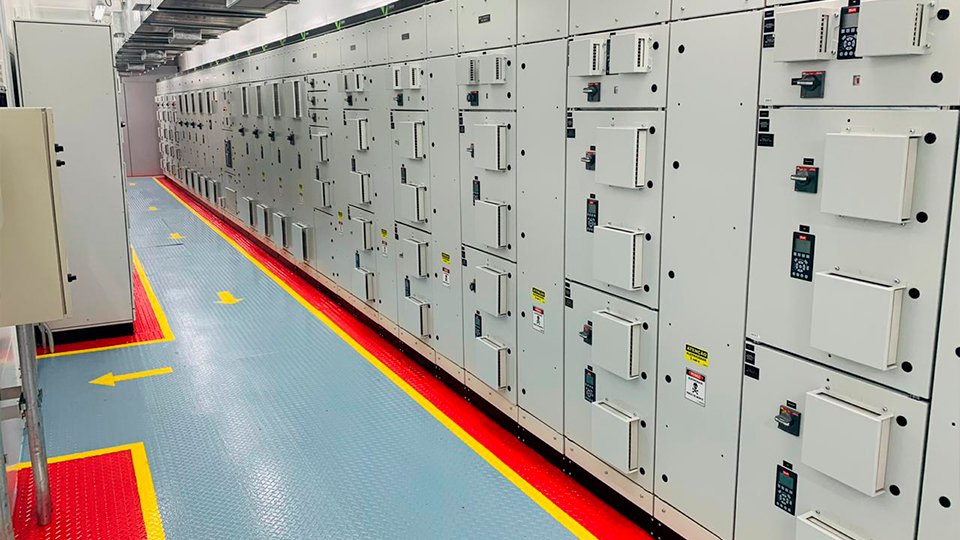

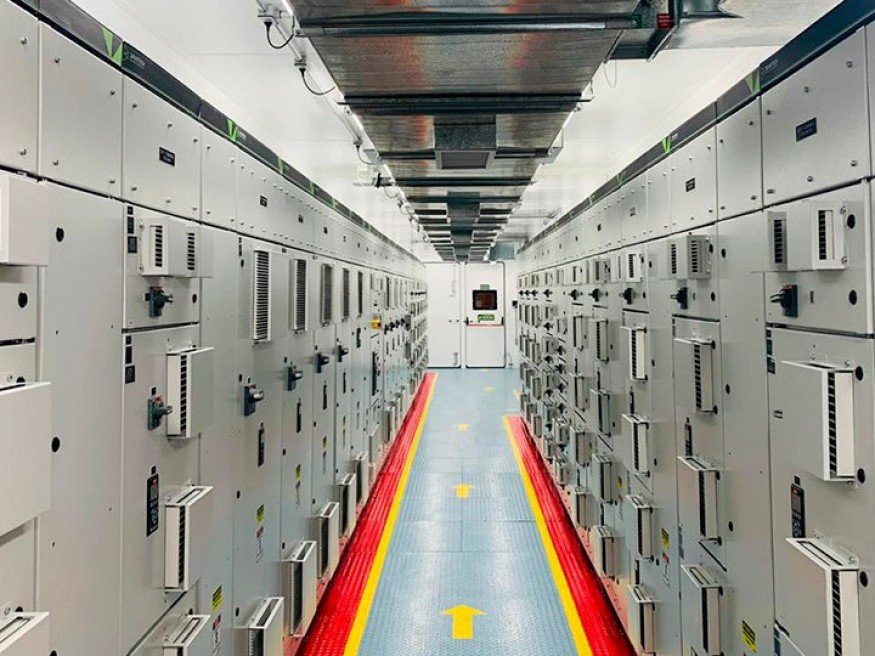

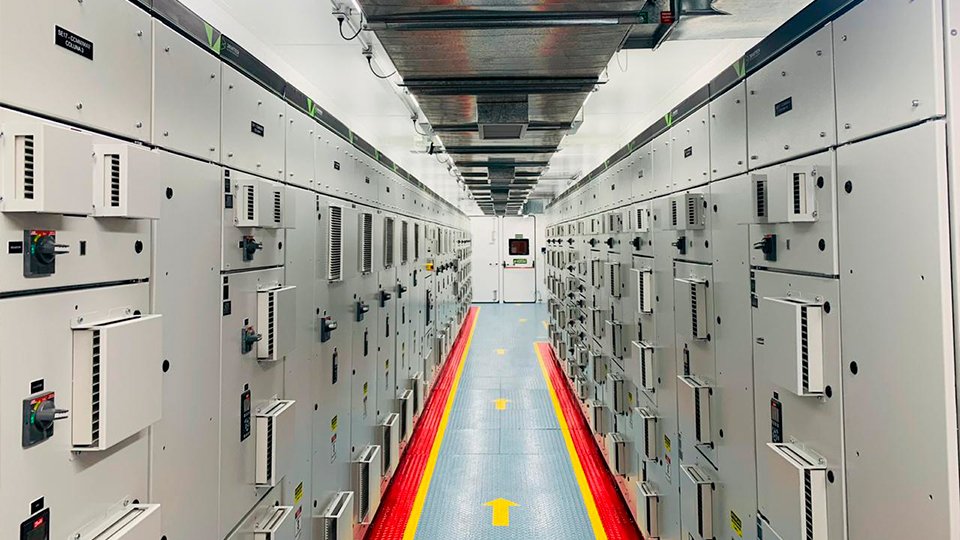

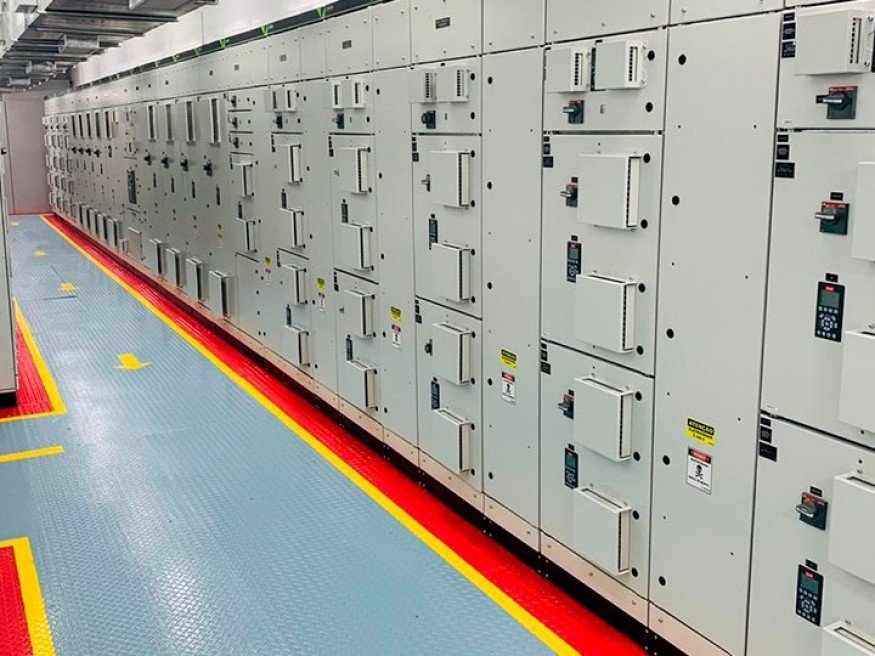

CCMBT - Low Voltage Motor Control Center;
Process automation systems;
No breaks (UPS);
Battery chargers;
Fire alarm/detection: Manual (C02 fire extinguishers) or automatic (gas);
Normal/emergency lighting: As required by the project;
Closed circuit TV: As required by the project;
Air conditioning system: Wall Mounted air conditioning as required by the project.

SERVICES

Positioning, Fixing and Interconnection Services for Internal Panels to electrocenters;
Loading of electrocenters and transport to the customer, including beaters if necessary;

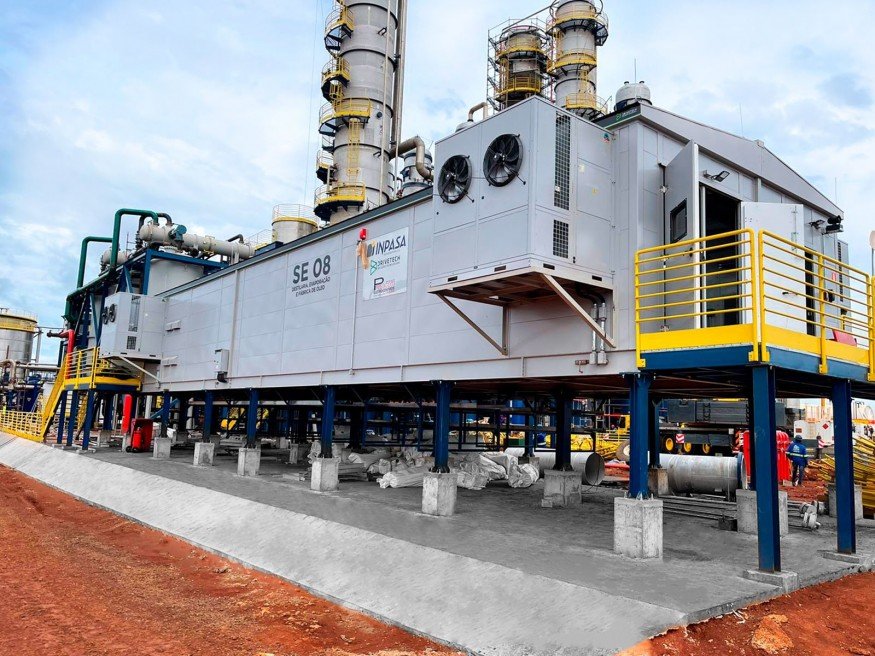

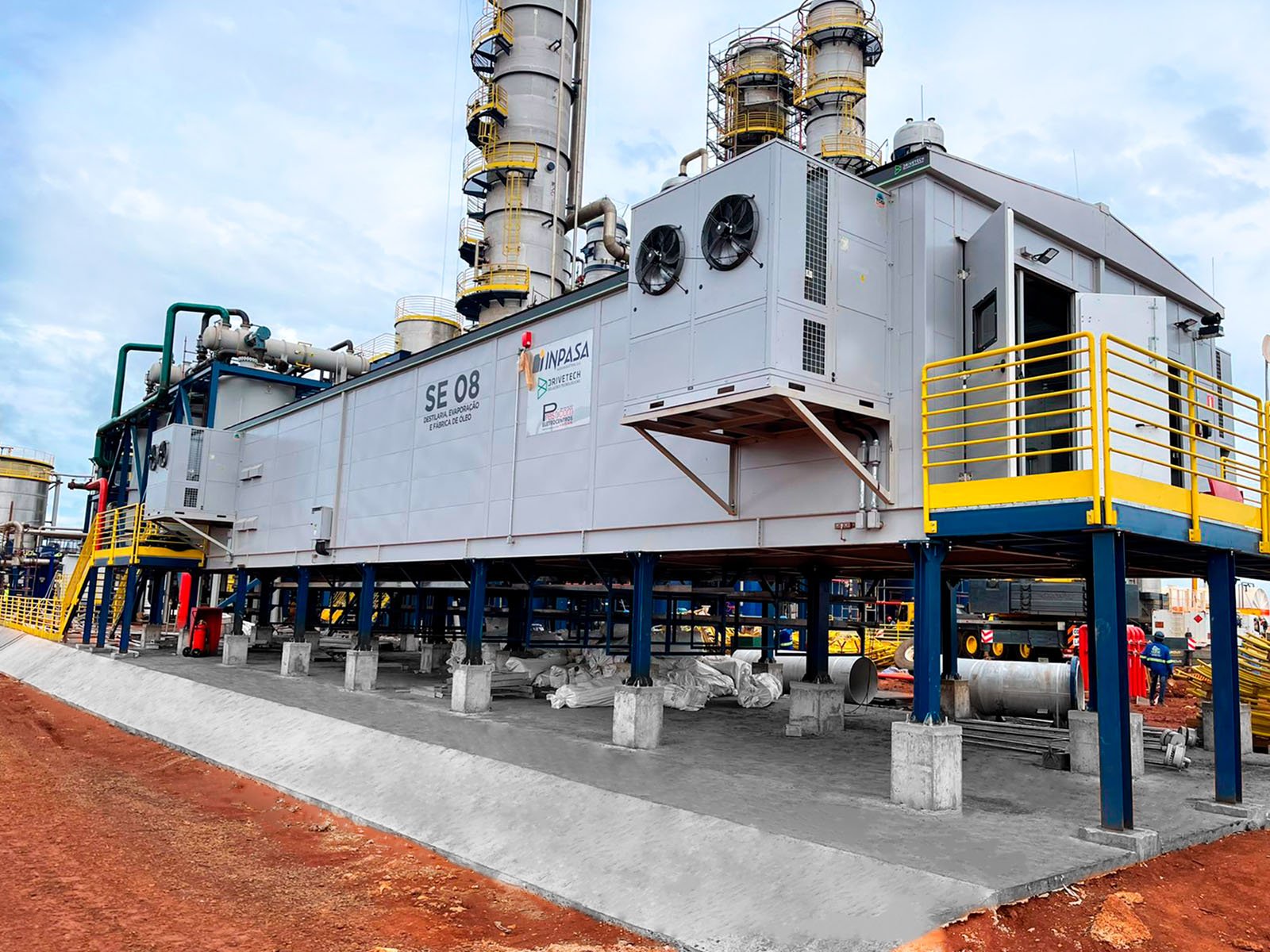

Unloading the e-house at the base and positioning and fixing it on the pilotis, with supervision of the installation and mechanical assembly of the electrocenters.

Main advantages

Shorter time for project execution.
Reduction of assembly time, commissioning and start-up of the work.
Mobility, enabling location changes and use in other applications.
Greater control in the management of the enterprise, since the responsibility for managing the entire project and supplying the equipment is the responsibility of the E-house manufacturer.
Insert formatted table.

CIVIL SUBSTATION	ELECTROCENTER
Incidence of ITR and IPTU	Exemption from municipal taxes
15% IPI for equipment	(CCM) 0% IPI for integrated systems
No tax recovery	ICMS credit recovery through CIAP
Depends on weather conditions	Depends on weather conditions
High cost for design changes	Low cost for design changes
Warehouse at the installation site	Warehouse at the factory = cost reduction
Labor at the installation site	Labor at the factory = cost savings
Risk of accidents at the installation site	Reducing the risk of accidents at the installation site
Greater investment in time, resources and no possibility of mobility	Gain in time, less investment and the possibility of easy relocation of the complete set.
