Low voltage panels - DriveTech - Soluções Tecnológicas

Our Low Voltage Panels are developed to meet the most diverse market segments, meeting quality and performance requirements with a high level of standardization, allowing easy assembly, installation, maintenance and future expansions.

Standards: NBR IEC 61439-1 and 2, NBR IEC 60439-1 TTA, IEC61641, NBR 5410, NR10 and NR12 and IEC 60529.

Technical Features:

Voltage Class 690V and 1kV;
Operating voltage up to 690V;
Frequency 50/60Hz;
Main bus rated current up to 6300A;
Short-Circuit Current up to 65kA;
Internal Arc Resistant;
Construction form 1, 2A, 2B, 3A, 3B, 4A and 4B;
Removable or fixed drawer;
Conventional or Smart.

Products:

QGBT – Low Voltage General Board;

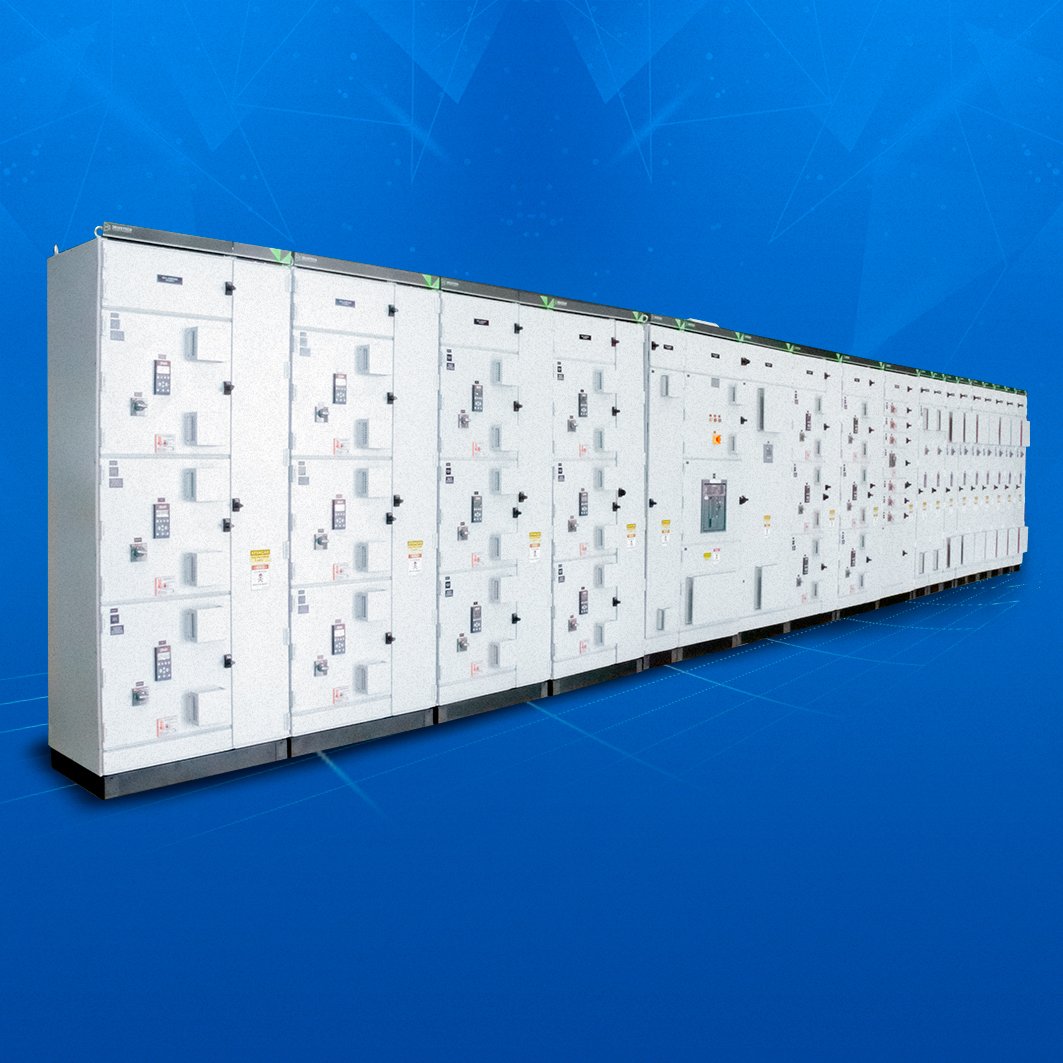

CCMBT – Low Voltage Motor Control Center;
QTM – Manual Transfer Board;
QTA – Automatic Transfer Board;

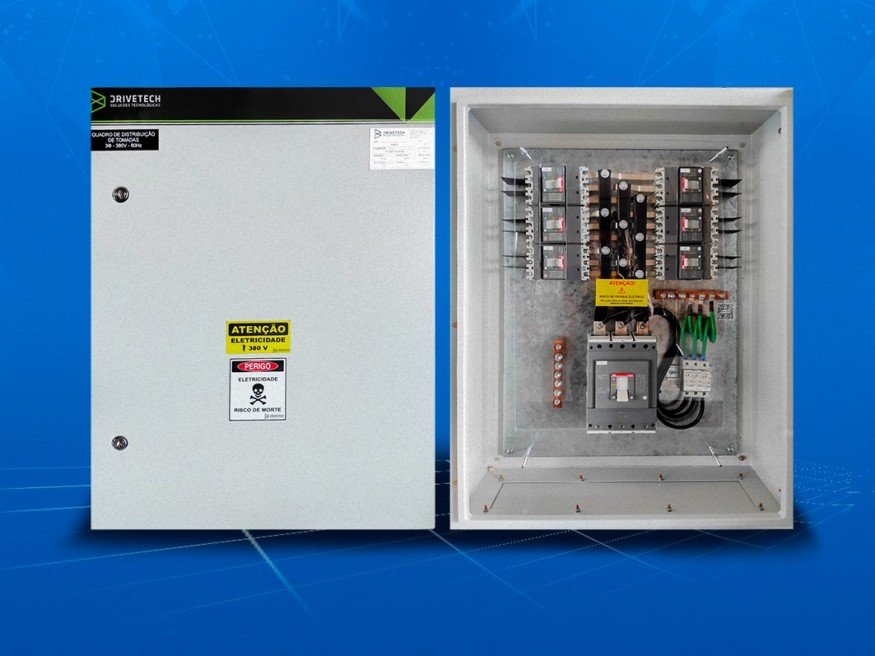

QDT – Outlet Board;
QDL – Light Board;
QDCC – Direct Current Distribution Board;
QDCA – Alternating Current Distribution Board;
PCAFP – Automatic Power Factor Correction Panel;
PFS – Safe Font Panel.
